Water-Cooled Flexible Connector

Water-Cooled Flexible Connectors are critical components used in high current systems of Electric Arc Furnaces (EAF), Ladle Furnaces (LF), Submerged Arc Furnaces (SAF) and other metallurgical equipment.
The products combine the functions of flexible copper connectors and water-cooled expansion joints, providing reliable current transmission while compensating thermal expansion, vibration and mechanical movement generated during furnace operation.
They are widely used in secondary current systems between transformers, bus tubes, electrode arms, water-cooled cables and furnace conductive sections in steel plants and ferroalloy plants.
The water-cooled structure ensures efficient heat dissipation and stable operation under ultra-high current and continuous heavy-duty working conditions.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Features

· Excellent electrical conductivity

· High flexibility and mechanical strength

· Integrated expansion compensation function

· Efficient water-cooling performance

· Resistance to vibration and thermal deformation

· Stable operation under high current loads

· Low electrical loss and long service life

· Suitable for continuous steelmaking operation

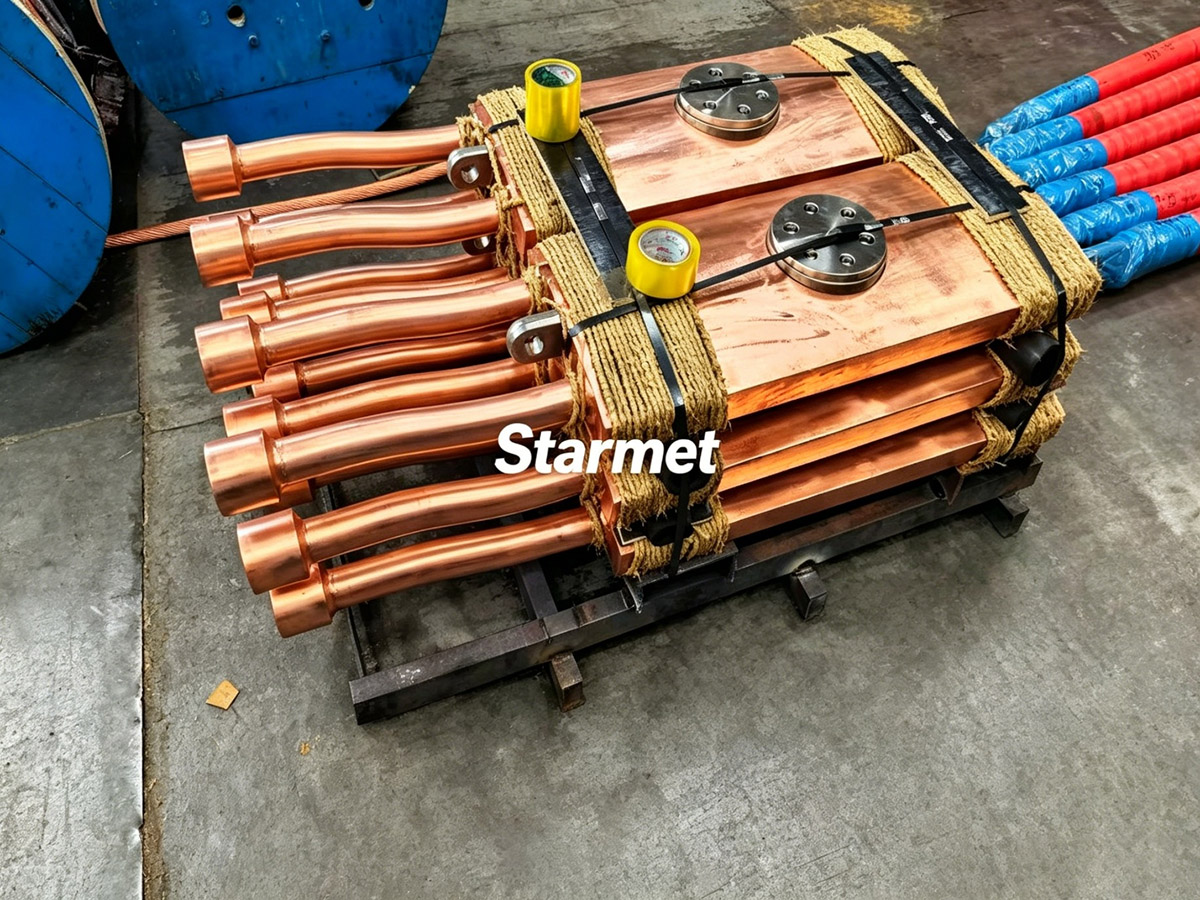

Water-Cooled Flexible Connector (5)

Materials

Products are manufactured using high conductivity copper materials and industrial-grade components, including:

· Electrolytic copper laminates

· Copper braided conductors

· Oxygen-free copper terminals

· Stainless steel compensating elements

· High-strength sealing and cooling components

Tin plating, silver plating and customized surface treatment are available according to operating requirements.

Manufacturing Process

The manufacturing process is strictly controlled to ensure reliable electrical and mechanical performance.

Main production procedures include:

· Precision cutting of copper laminates and conductors

· Forming and stacking of flexible copper elements

· Diffusion welding or high-pressure pressing

· CNC machining of contact surfaces

· Welding and assembly of water-cooled expansion structures

· Pressure and leakage testing

· Surface treatment and anti-oxidation processing

· Final dimensional and conductivity inspection

Customized designs are available according to current capacity, furnace type and installation requirements.

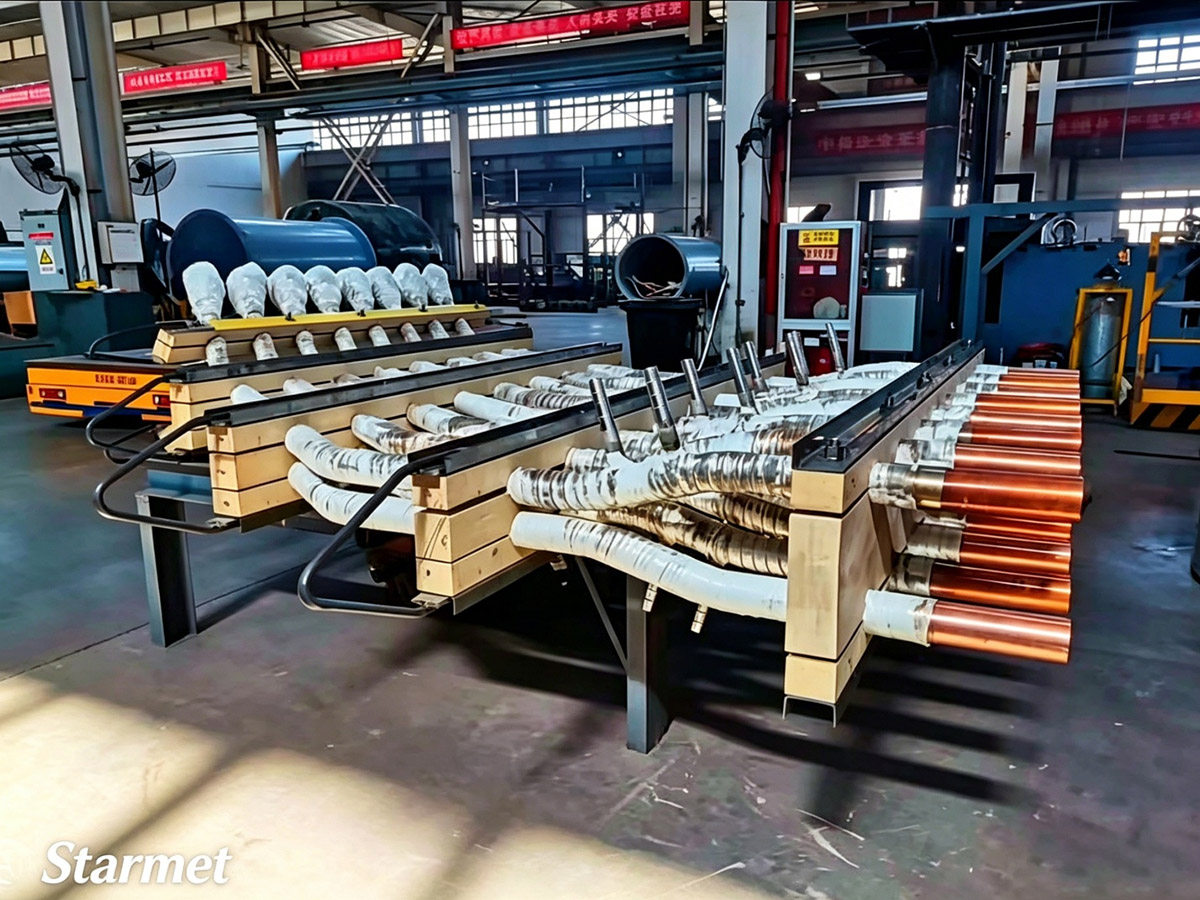

Water-Cooled Flexible Connector (4)

Quality Control

Strict quality inspection is carried out throughout the entire manufacturing process.

Inspection procedures include:

· Raw material inspection

· Conductivity testing

· Dimensional inspection

· Welding quality inspection

· Water pressure and leakage testing

· Surface flatness inspection

· Current carrying capability verification

· Ultrasonic Testing (UT) if required

· Final factory acceptance testing

Applications

Widely used in:

· Electric Arc Furnace (EAF)

· Ladle Furnace (LF)

· Submerged Arc Furnace (SAF)

· Ferroalloy Furnace

· Steel Plant High Current Systems

· Secondary Conductive Systems

We provide customized Water-Cooled Flexible Connectors and expansion compensation solutions for various metallurgical and heavy industrial applications worldwide.

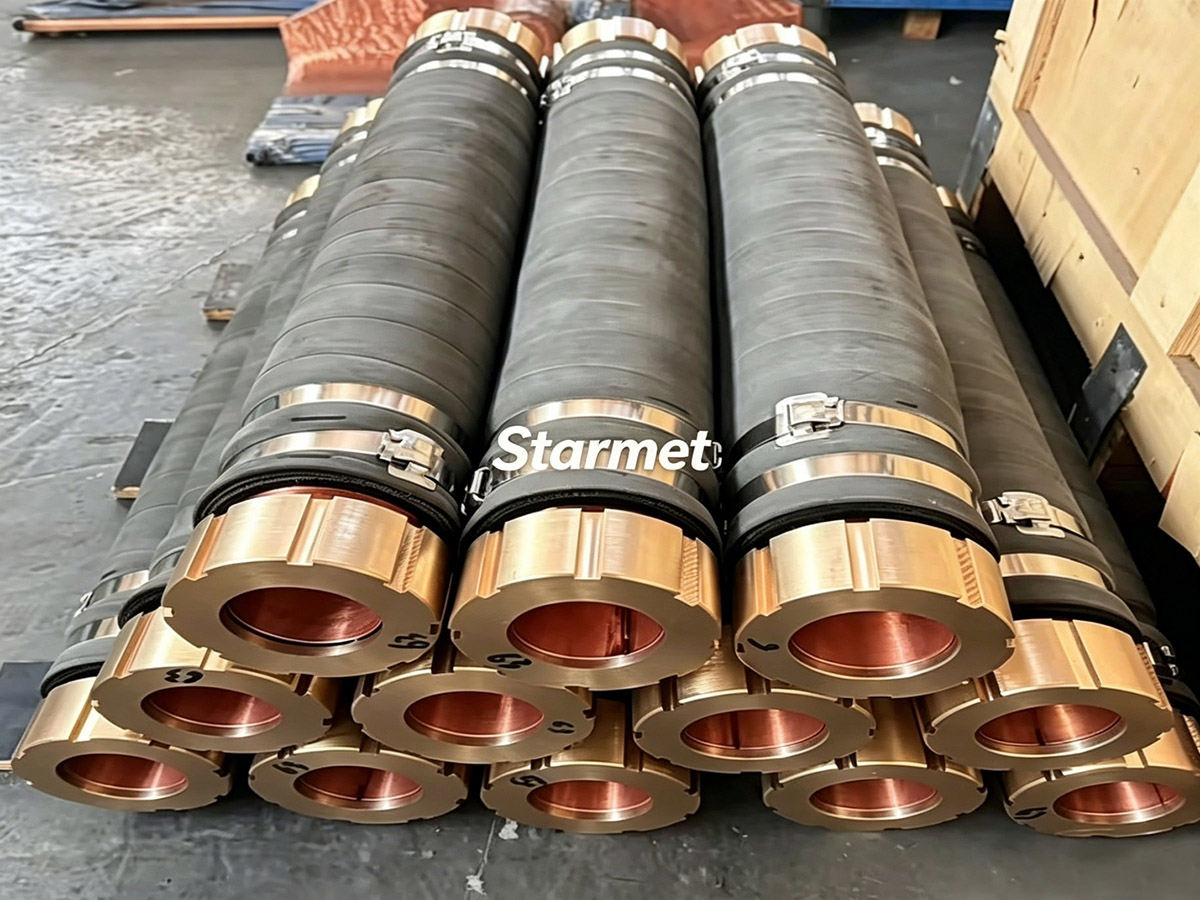

Water-Cooled Flexible Connector (2)
