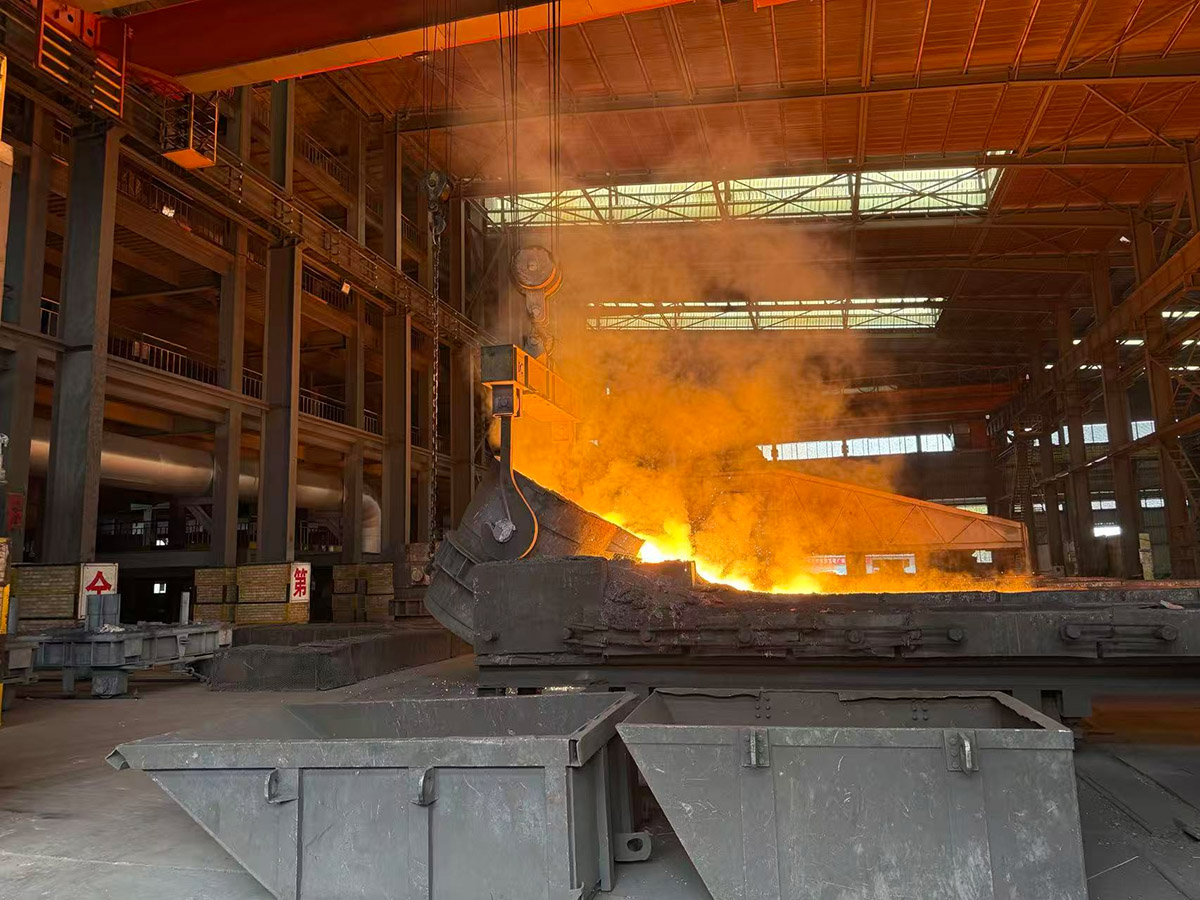

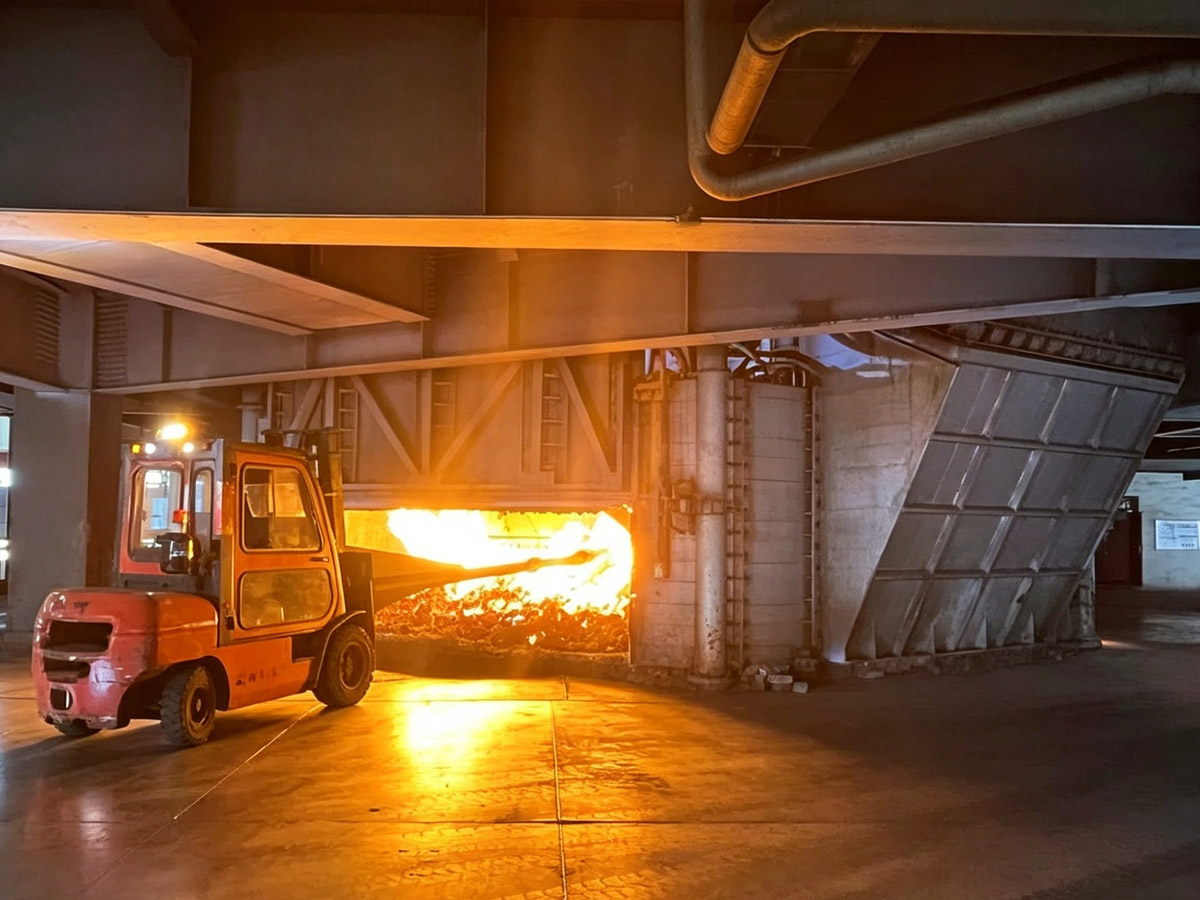

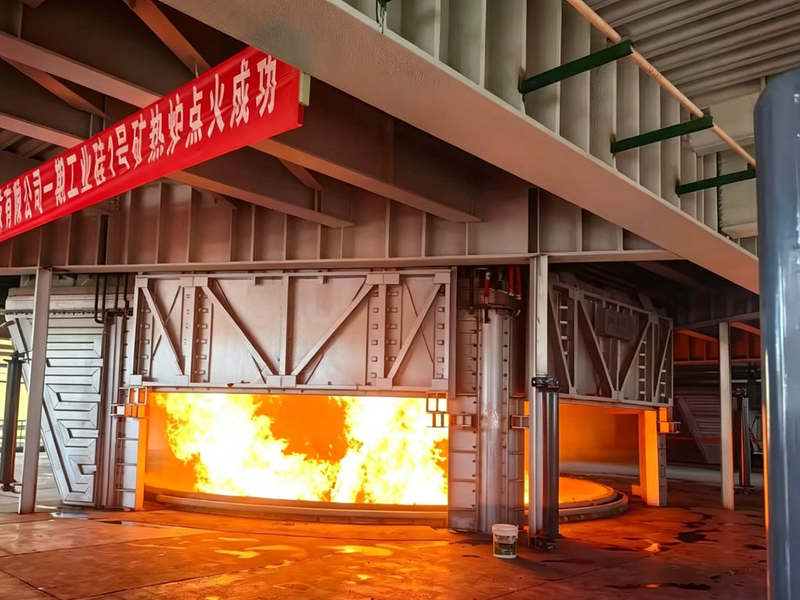

AC Submerged ARC Furnace

Working Principle
The AC Submerged Arc Furnace (AC SAF) operates with three electrodes immersed in the burden material. Electrical energy is transferred through the charge and converted into heat by resistance heating and submerged arc reactions.
The generated heat enables the reduction and smelting of various ores and raw materials, producing ferroalloys, silicon metal and other metallurgical products. AC SAF technology is widely recognized for its reliability, large production capacity and continuous operation capability.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Main Technical Parameters

Parameter	Typical Range
Furnace Type	AC Submerged Arc Furnace
Furnace Capacity	6 – 90 MVA
Annual Production Capacity	20,000 – 500,000 t/year
Furnace Shell Internal Diameter	4.0 – 18.0 m
Furnace Hearth Depth	1.5 – 5.0 m
Furnace Type	Open / Semi-Closed / Closed
Electrode Quantity	3 Electrodes
Electrode Type	Self-Baking / Graphite
Electrode Diameter	600 – 2,000 mm
Transformer Capacity	6 – 90 MVA
Primary Voltage	10 / 35 / 66 kV
Secondary Voltage	120 – 900 V
Transformer Tap Positions	17 – 33 Steps
Electrode Regulation System	Hydraulic
Electrode Slip System	Automatic
Burden Type	Ore + Reductant + Flux
Raw Materials	Chromite, Manganese Ore, Quartz, Nickel Ore, Lime, Coke
Operating Temperature	1,400 – 2,000 ℃
Cooling Water Flow Rate	50 – 500 m³/h
Cooling Water Pressure	0.3 – 0.8 MPa
Off-Gas Temperature	300 – 1,200 ℃
Process Control	PLC / SCADA
Environmental System	Closed Furnace Available

Typical Furnace Sizes

Transformer Capacity	Shell Diameter
6 MVA	4.0 – 5.0 m
12 MVA	5.0 – 6.5 m
18 MVA	6.0 – 7.5 m
25 MVA	7.0 – 8.5 m
36 MVA	8.0 – 10.0 m
48 MVA	9.0 – 11.5 m
72 MVA	11.0 – 14.0 m
90 MVA	13.0 – 18.0 m

Typical Products

· Ferromanganese (FeMn)

· Silicomanganese (SiMn)

· Ferrochrome (FeCr)

· Ferronickel (FeNi)

· Silicon Metal

· Calcium Carbide

Scope of Supply

Mechanical Equipment

· Furnace Shell

· Furnace Roof

· Electrode Columns

· Electrode Holding System

· Furnace Tilting System

· Tapping System

Electrical Equipment

· Furnace Transformer

· High Voltage System

· Short Network

· Copper Bus Tubes

· Electrode Regulation System

· PLC & SCADA System

Auxiliary Systems

· Water Cooling System

· Fume Extraction System

· Hydraulic System

· Spare Parts Package
