Water-Cooled Panels

Water cooled panels are widely used in Electric Arc Furnace (EAF) systems, including the fourth hole, furnace sidewall, roof, water cooled ducts and dedusting combustion chamber.
They are designed to withstand extreme thermal radiation, dust erosion and continuous high-temperature operation while improving furnace safety, service life and production stability.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Main Features

Item	Description
Application	EAF Fourth Hole, Water Cooled Duct, Combustion Chamber, Dedusting System
Material	20G / 20G-D Boiler Steel, Wear Resistant Steel
Welding	GTAW (TIG) root welding with multi-layer filling
Heat Treatment	Overall stress relieving heat treatment
Surface Treatment	Shot blasting to Sa2.5 standard
Inspection	UT / PT / Hydraulic Pressure Test
Advantages	High cooling efficiency, wear resistance, long service life

Manufacturing Highlights

· High quality 20G and wear resistant steel materials

· Precision fabrication and strict dimensional control

· Argon arc welding (TIG) root pass for reliable weld penetration

· Overall heat treatment to reduce residual stress

· Shot blasting for improved surface quality and coating adhesion

· 100% hydraulic pressure testing before delivery

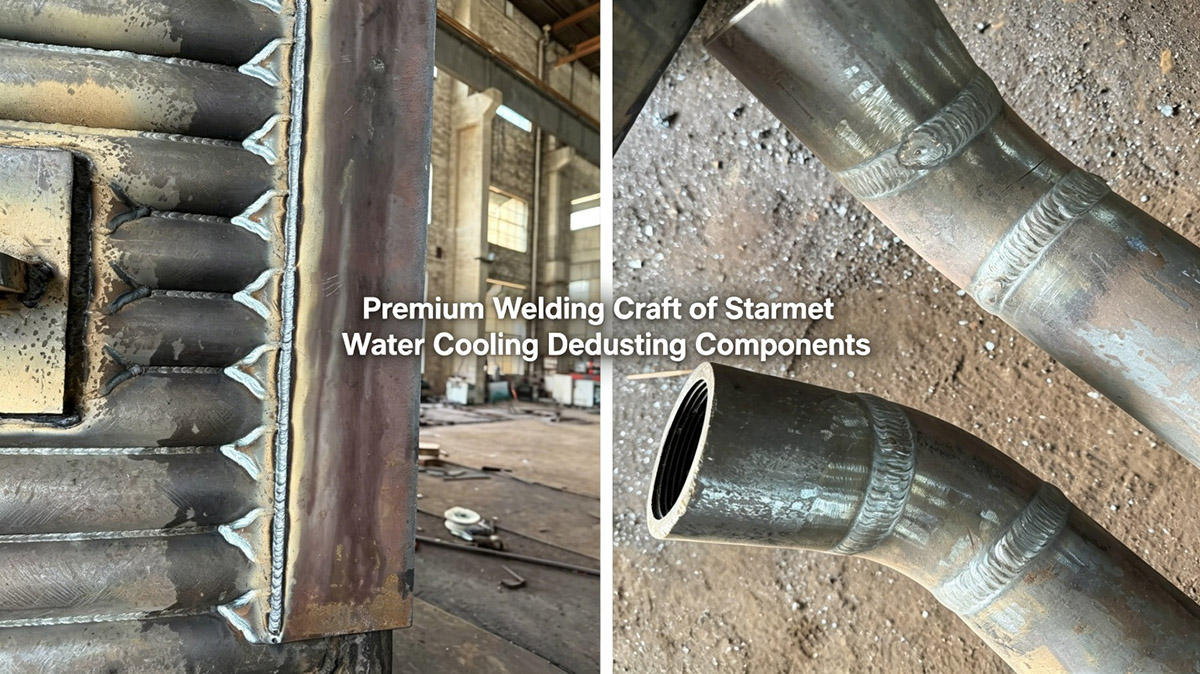

Water Cooled Panels (4)

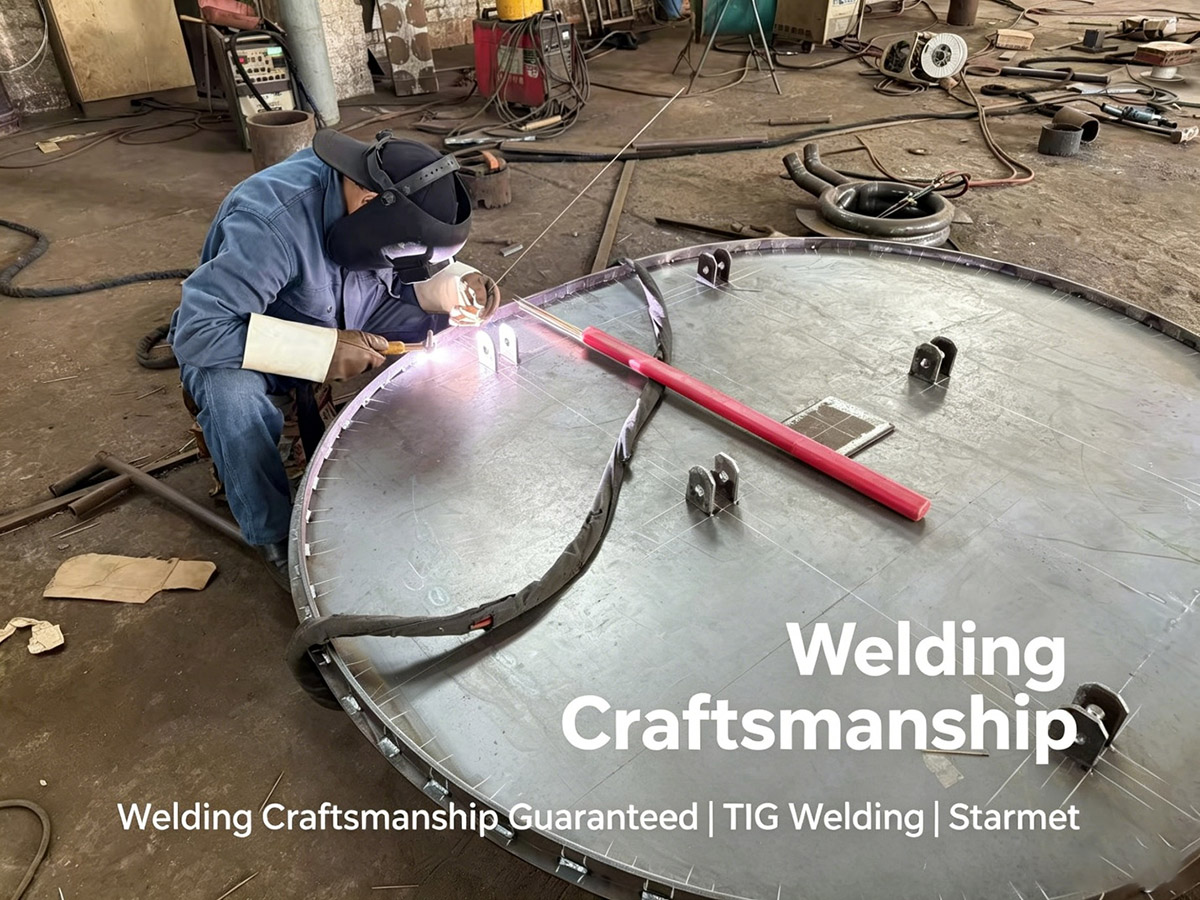

Water Cooled Panels (3)

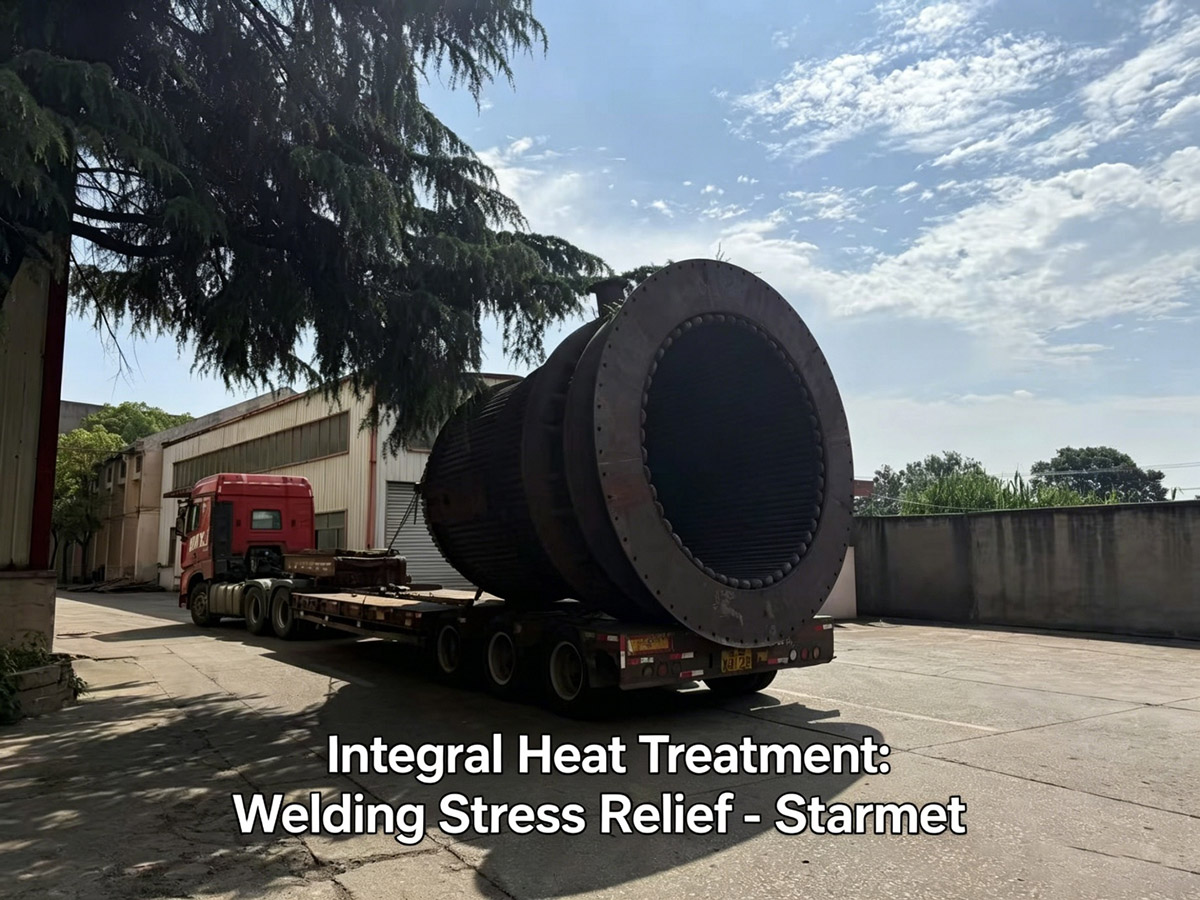

Water Cooled Panels (2)

Benefits

· Extended furnace campaign life

· Reduced refractory consumption

· Improved operational safety

· Lower maintenance frequency

· Stable performance under severe steel plant conditions
